AMERICAN CRS EQUIPMENT · VEGA
V820 cabinet rectifiers
Air or water cooling · dual-stack cabinet platform
The Vega V820 combines modular three-phase DC power with a dual-stack cabinet format for demanding electroplating and anodizing processes. Air- and water-cooled configurations bring high-current capability, service access and flexible controls into an integrated system.
Up to 384 kW
Maximum output power
Up to 24,000 A
Maximum DC output current
6–400 VDC
Available output voltage ratings
Output ratings depend on the selected configuration. Maximum voltage, current and power are separate limits, not a simultaneous operating point.
Cabinet power built around the process.
The V820 uses parallel switch-mode power modules with floating output and current or voltage control. The dual-stack platform is configured around the required output. Select the cooling arrangement, module configuration, control functions and cabinet options for the complete installation.
Modular output
Match the power-module and output configuration to the process. Published voltage, current and power maxima are separate family limits.
Cabinet integration
Cabinet options support service access, cable routing, cooling and installation layout. Final dimensions and connections require a configuration-specific check.
Process control
Current or voltage control and the included IOS interface support plant integration, with optional industrial protocols and output waveforms.
Air or water cooling. One cabinet platform.
The V820 is available with air or water cooling. The protection class and cooling-service requirements differ; cabinet and heat-exchanger options are selected separately.

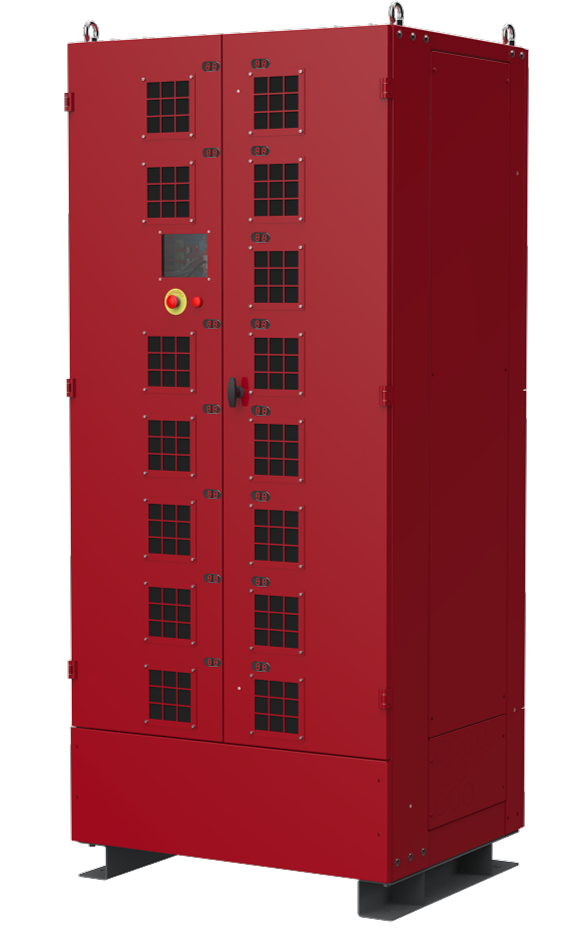

V820 air cooled
Dual-stack modular cabinet with IP32 protection. Confirm ventilation, output connections and service access.

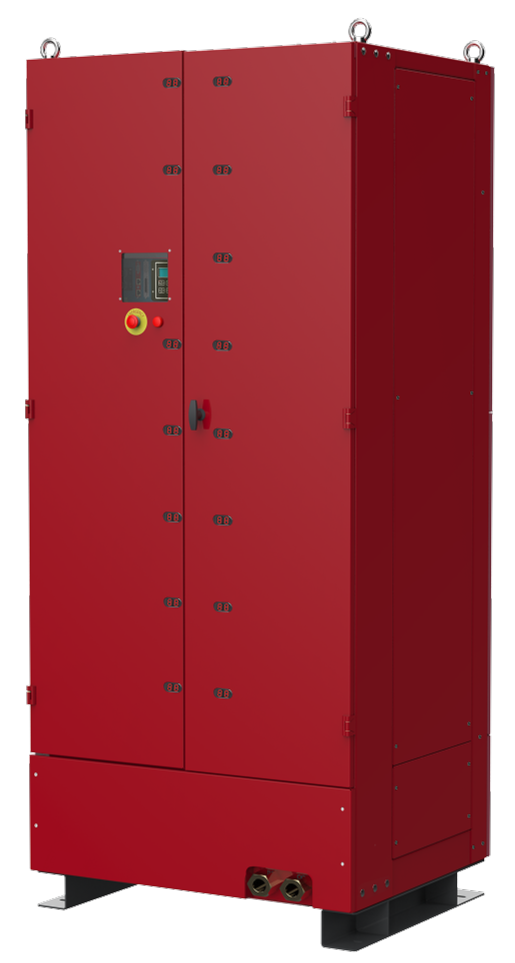

V820 water cooled
Dual-stack water-cooled cabinet with IP54 protection. Optional integrated cooling packages have their own installation and service requirements.
Technical specifications
Ratings below describe the V820 platform. The selected output, module arrangement, cooling and optional functions determine the final system specification.
Specification
V820 rating / configuration
Electrical & output
Input supply
Three phase; 208 / 230 / 400 / 440 / 480 / 575 VAC ±10%
Input frequency
50–60 Hz
Maximum power
384 kW
Voltage ratings
6–400 VDC, configuration dependent
Current ratings
100–24,000 A DC, configuration dependent
Ripple
<3%; <1% on request
Power factor
>0.92 at rated load
Efficiency
89–94% at rated load
Control & enclosure
Operating mode
Current or voltage control
Current regulation
2–100%
Voltage regulation
5–100%
Accuracy
1% of full scale
Cooling / protection
Air: IP32
Water: IP54
Ambient temperature
104°F standard
Up to 122°F on request, with derating
Water inlet temperature
66.2–95°F
Weight
1,165.1–2,094.4 lb, configuration dependent
Enclosure color
RAL 3004
Select voltage and current together within the specified power and module configuration. Optional waveforms and integrated cooling packages may have different output and installation requirements.

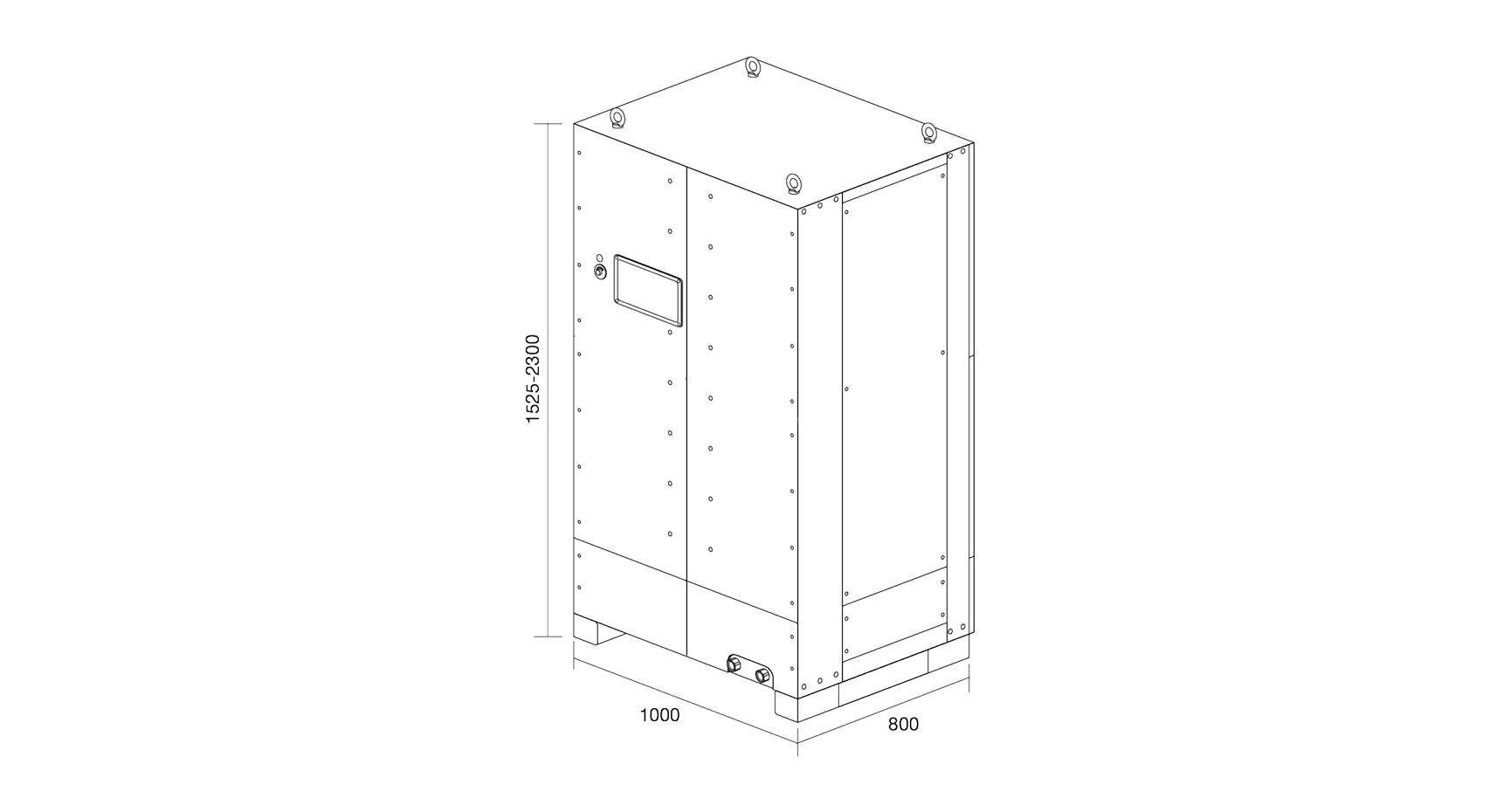

Dimensions & drawings
Cabinet body dimensions are shown in width × height × depth order. Height depends on configuration; feet, protrusions, cable entry and service clearances require a separate installation check.
V820 cabinet body
39.37 in
Width
60.04–90.55 in
Height
31.50 in
Depth
Original drawing uses millimeters; body dimensions above are converted to inches. Confirm mounting, protrusions, connections and service clearances for the selected configuration.
Options & accessories
Configure the V820 around your process, controls and installation. Options are specified separately; availability depends on the selected output and system configuration.
Options
- Higher-efficiency DC output. Synchronous rectification is available for applicable configurations.
- Reversing output. Switch between forward and reverse output polarity.
- Pulse output. A 1 ms option is available for resistive loads; software, recipe and component selection determine performance.
- Auxiliary CPU supply. A 24 VDC auxiliary control-power configuration is available.
- Lower ripple. Ripple below 1% is available on request.
- Emergency stop. Specify the external safety and control arrangement.
- Industrial communications. Profibus-DP, DeviceNet, EtherNet/IP, PROFINET and Modbus TCP.
- Analog PLC control. Integrate process commands and feedback with the plant control system.
- Multi-tower operation. Interconnect compatible units for a common load under coordinated control.
- Extended ambient temperature. Up to 122°F is available on request with derating.
- UL-compliance configuration. Confirm the required components and certification scope for the specific system.
- Water solenoid. Available for applicable water-cooled units; not available with an integrated WWHE heat exchanger.
- Integrated cooling. WWHE isolated regulated water circuit or WMAT nickel-clad heat exchanger, as applicable to the selected system.
- Cabinet access. 180-degree doors, side panels for back-to-back arrangements and optional 3.94-inch feet.
- Top entry. AC power and communications entry options on top.
- Operator interface. Optional 7-inch HMI. Confirm the required functions and control package.
Accessories
- REM8E remote control. 24 VDC / 24 VAC supply.
- REM8 remote control. 85–264 VAC supply.
- REMMTV. Service tool for Vega rectifiers.
- RSM09A. CPU090 simulator.

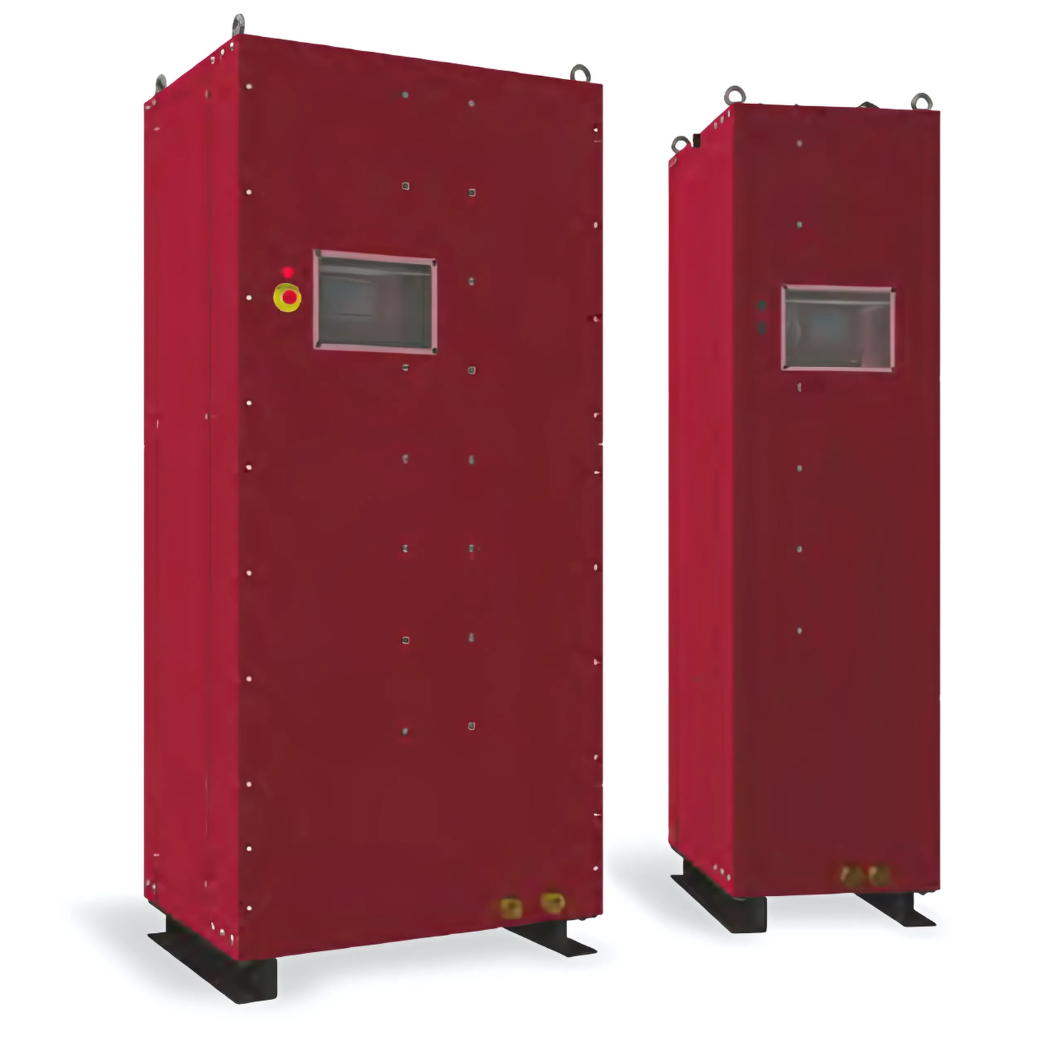

A closer look at the V820
CONFIGURE YOUR V820
Put the right DC power at your process.
Tell American CRS your required voltage and current, available input supply, installation and control needs. We’ll help select a V820 configuration for your electroplating or anodizing operation.
