AMERICAN CRS EQUIPMENT · VEGA

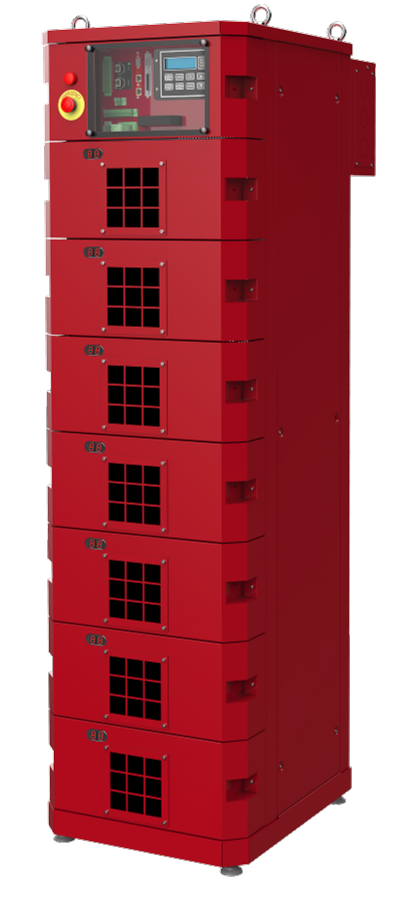

V700 modular tower rectifiers
Floor-standing · Air or water cooling
The Vega V700 is a floor-standing modular rectifier for high-current electroplating and anodizing. Air- and water-cooled tower configurations combine parallel power modules with flexible process controls.
Up to 168 kW
Maximum output power
Up to 10,500 A
Maximum DC output current
6–400 VDC
Available output voltage ratings
Output ratings depend on the selected configuration. Maximum voltage, current and power are separate limits, not a simultaneous operating point.
Scalable power for production processes.
The V700 uses up to seven parallel power modules in a floor-standing tower with floating output. Select current or voltage control, manual or automatic operation and the process functions required by the line. Module count, cooling and output configuration determine the final capacity and installation.
Parallel modules
Up to seven modules share the load within the platform. Output limits depend on the selected configuration.
Air or water cooling
Air-cooled IP32 and water-cooled IP54 configurations support different installation environments.
Control integration
Vega process controls and the included IOS interface support plant integration, with industrial protocol and waveform options specified separately.
Air and water towers in one platform.
Select the cooling arrangement around the facility and process environment. Tower height and weight vary with the module stack.

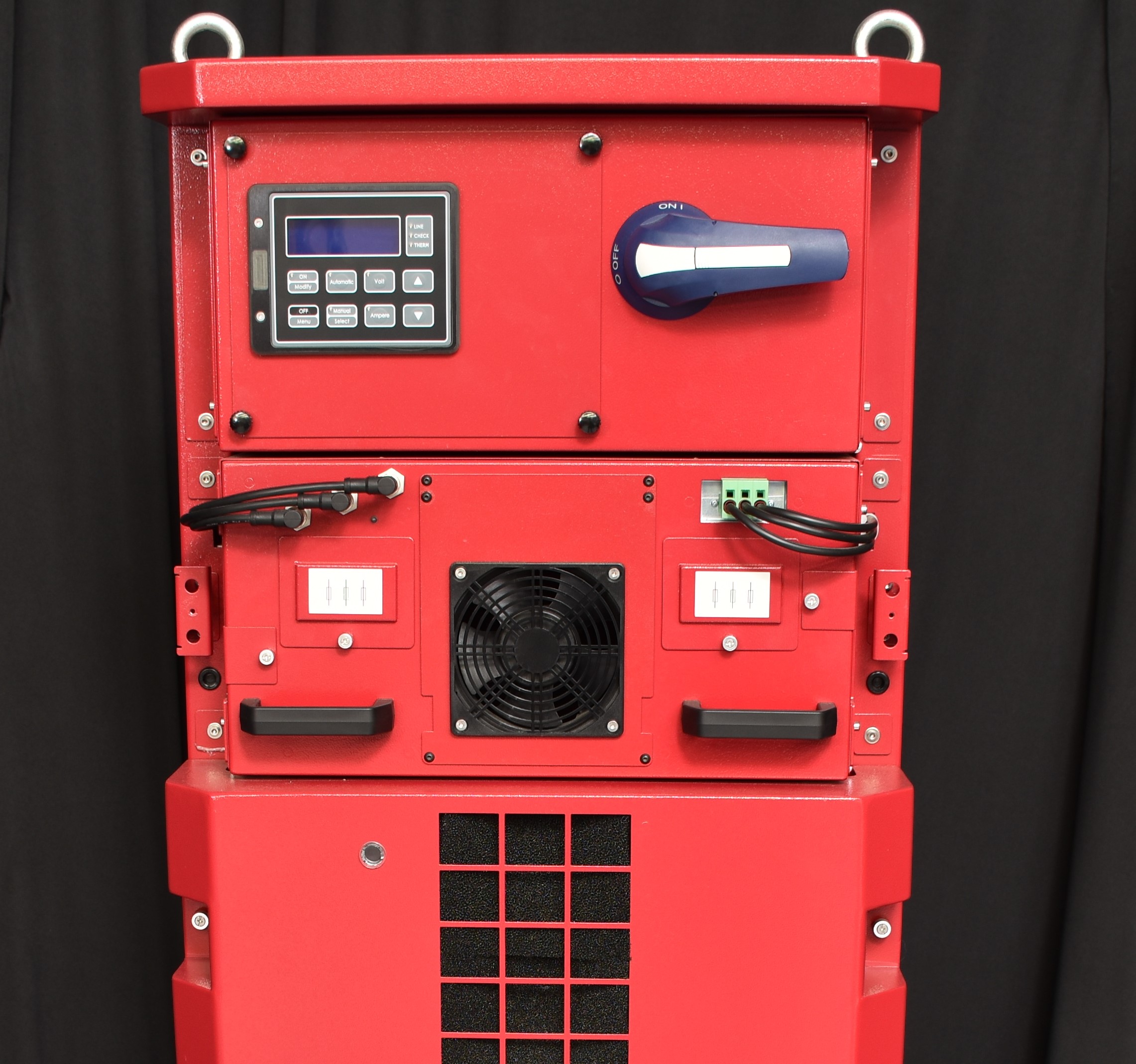

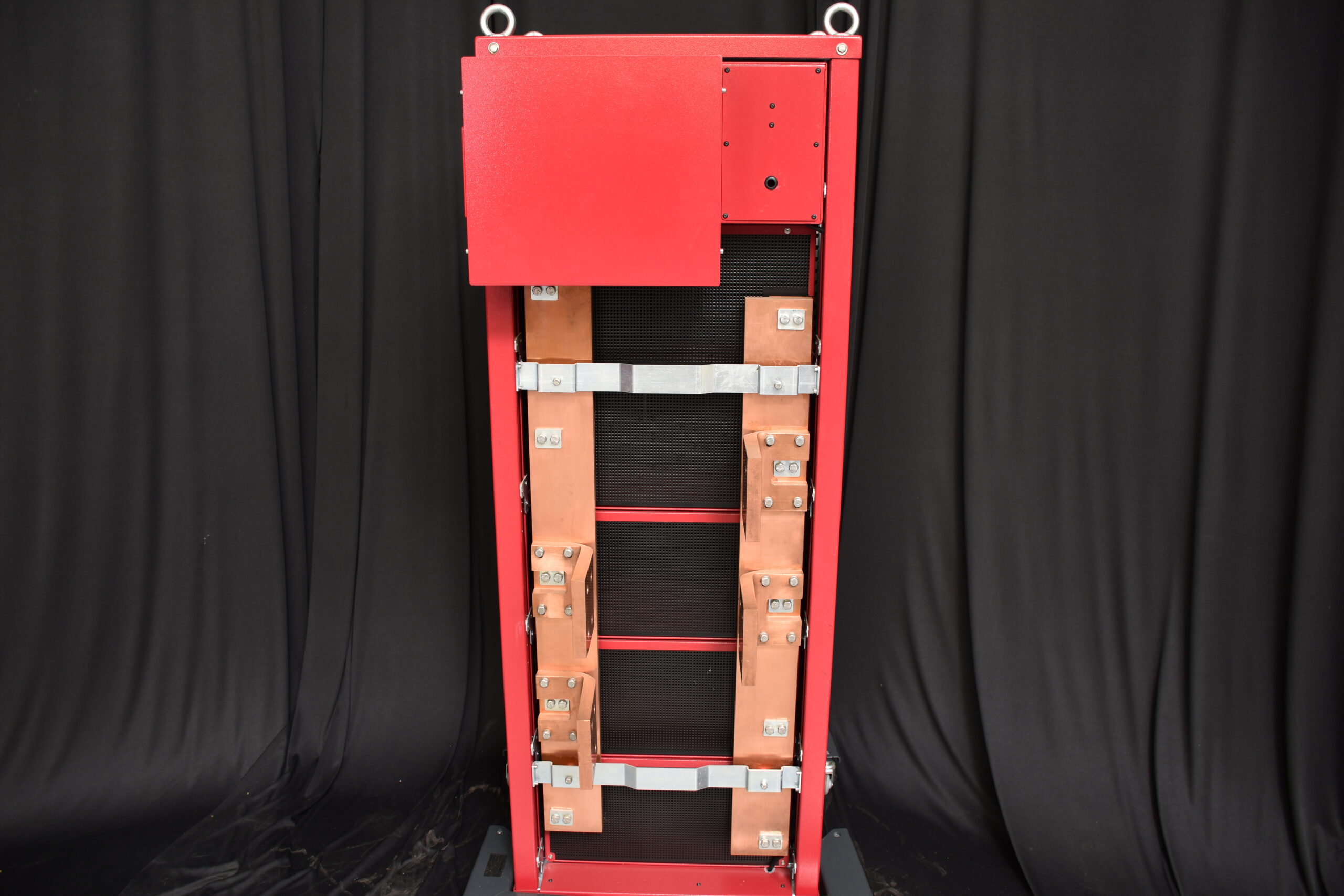

V700 air cooled
Floor-standing modular tower with IP32 protection. Provide the ventilation and service access required by the selected stack.

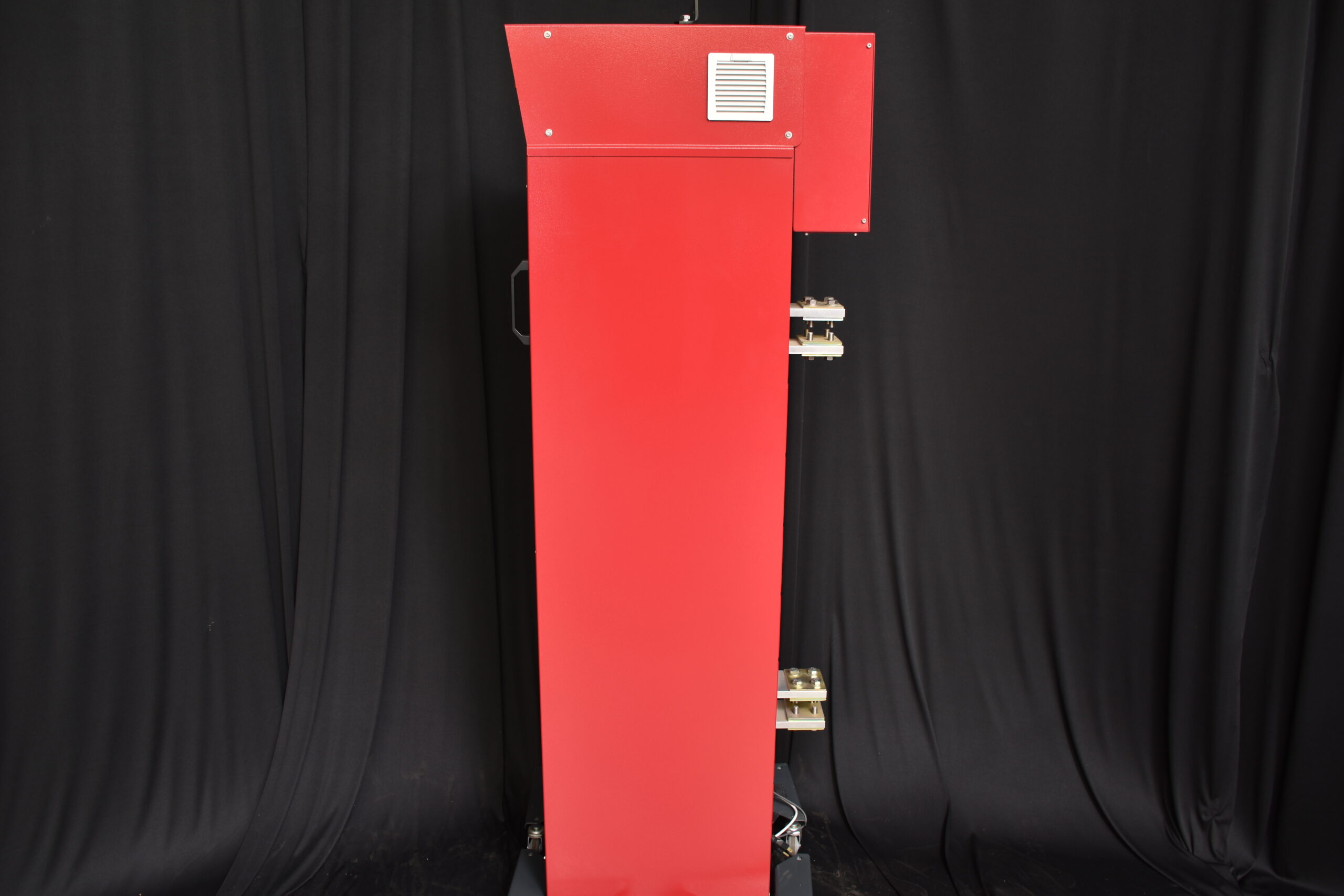

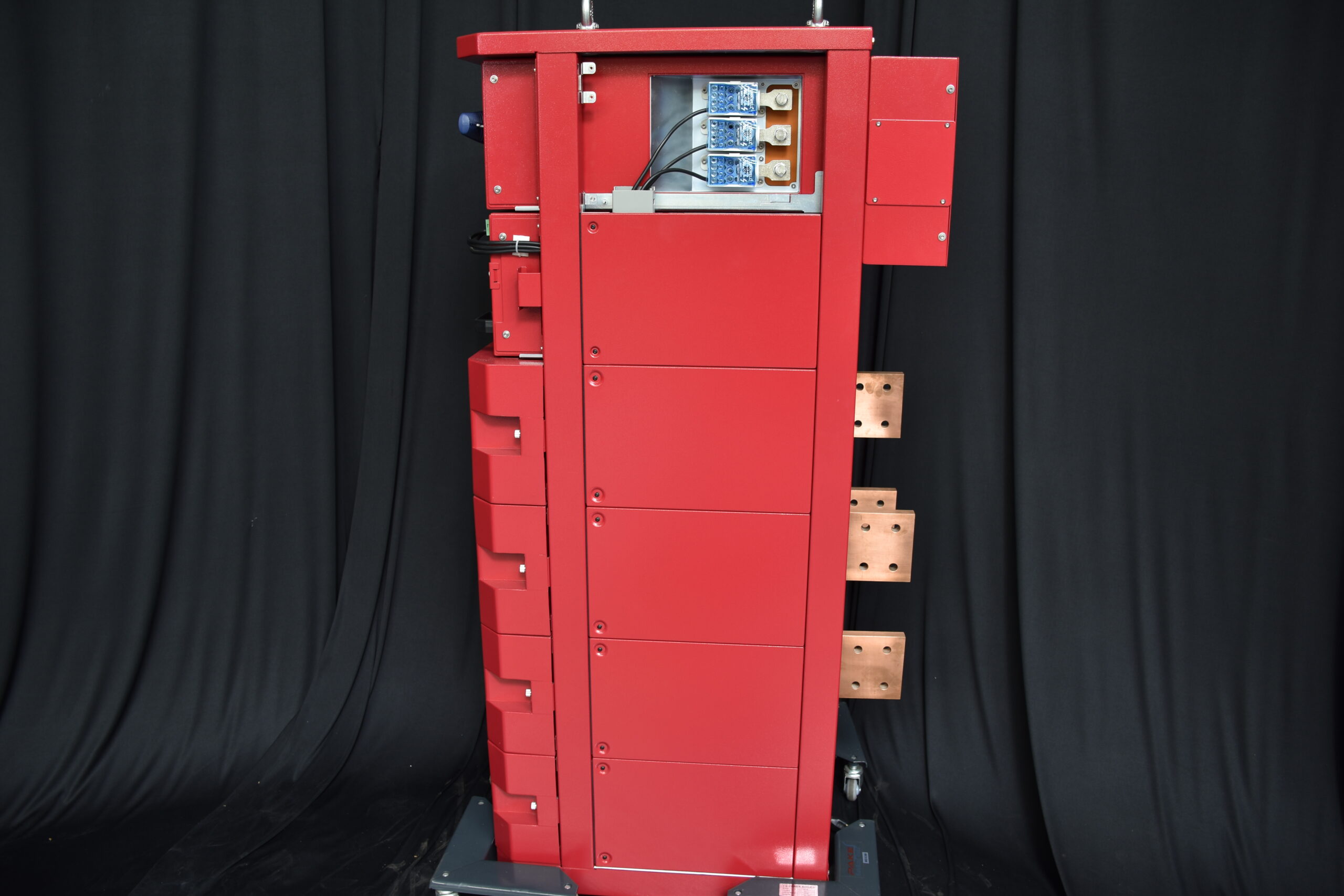

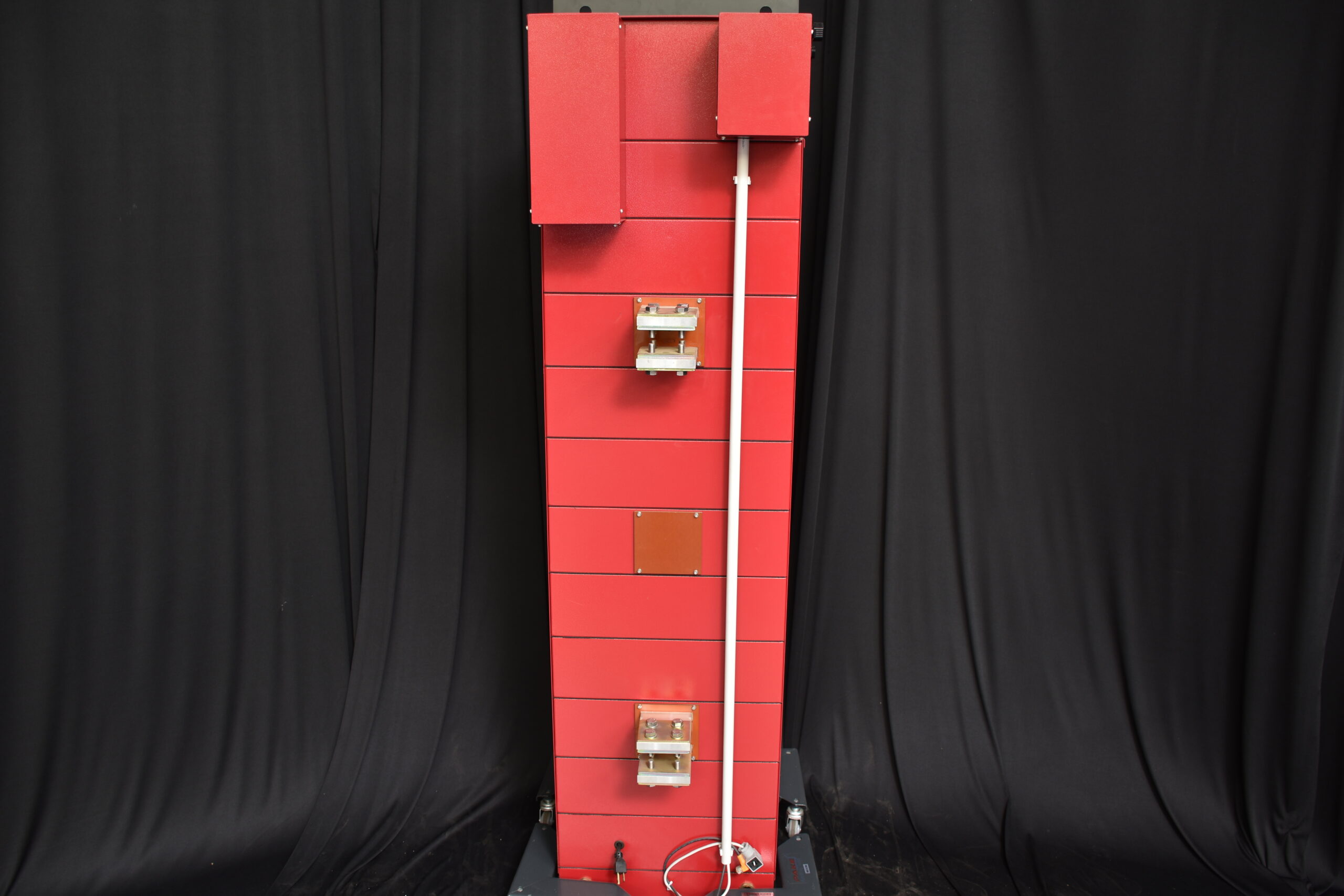

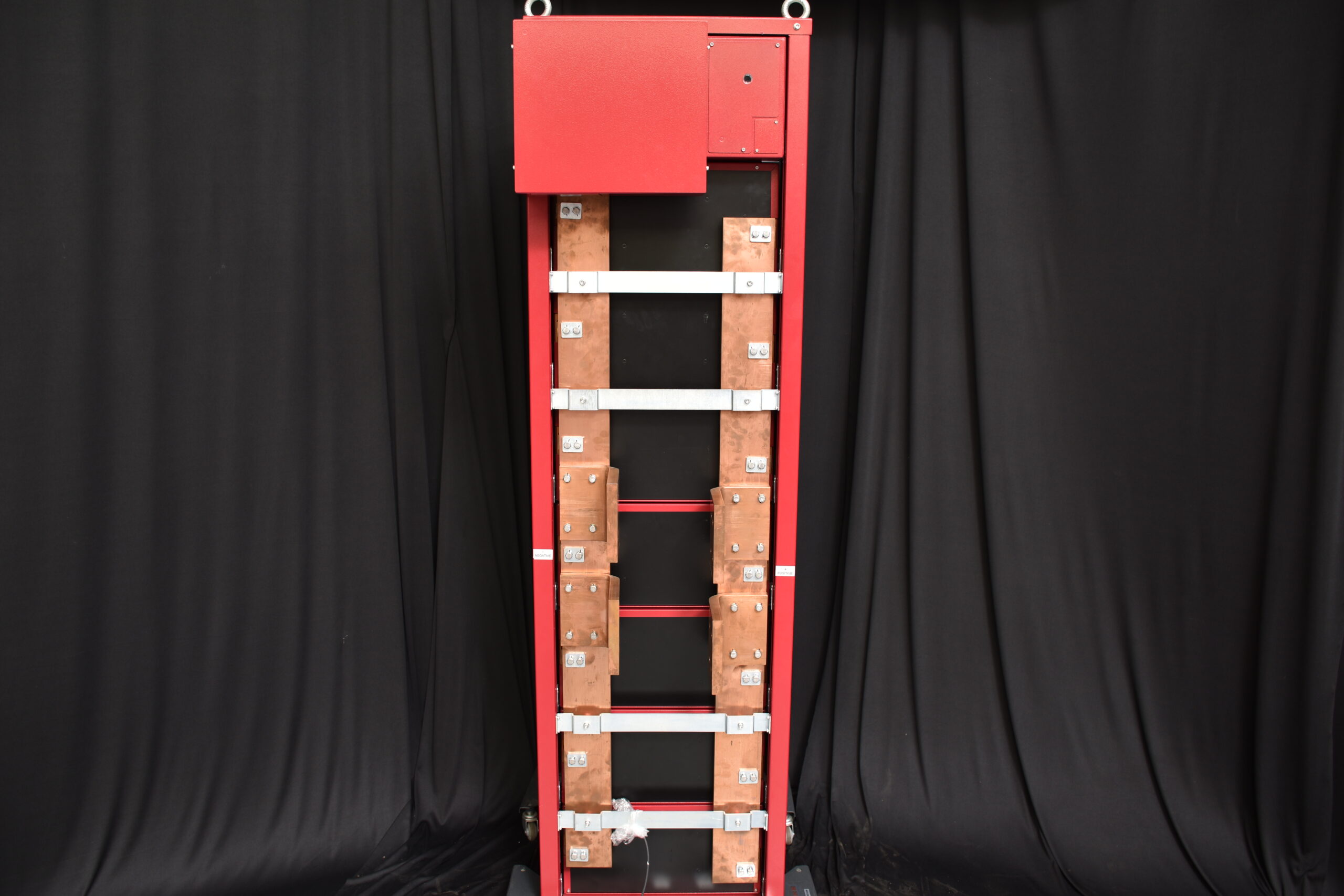

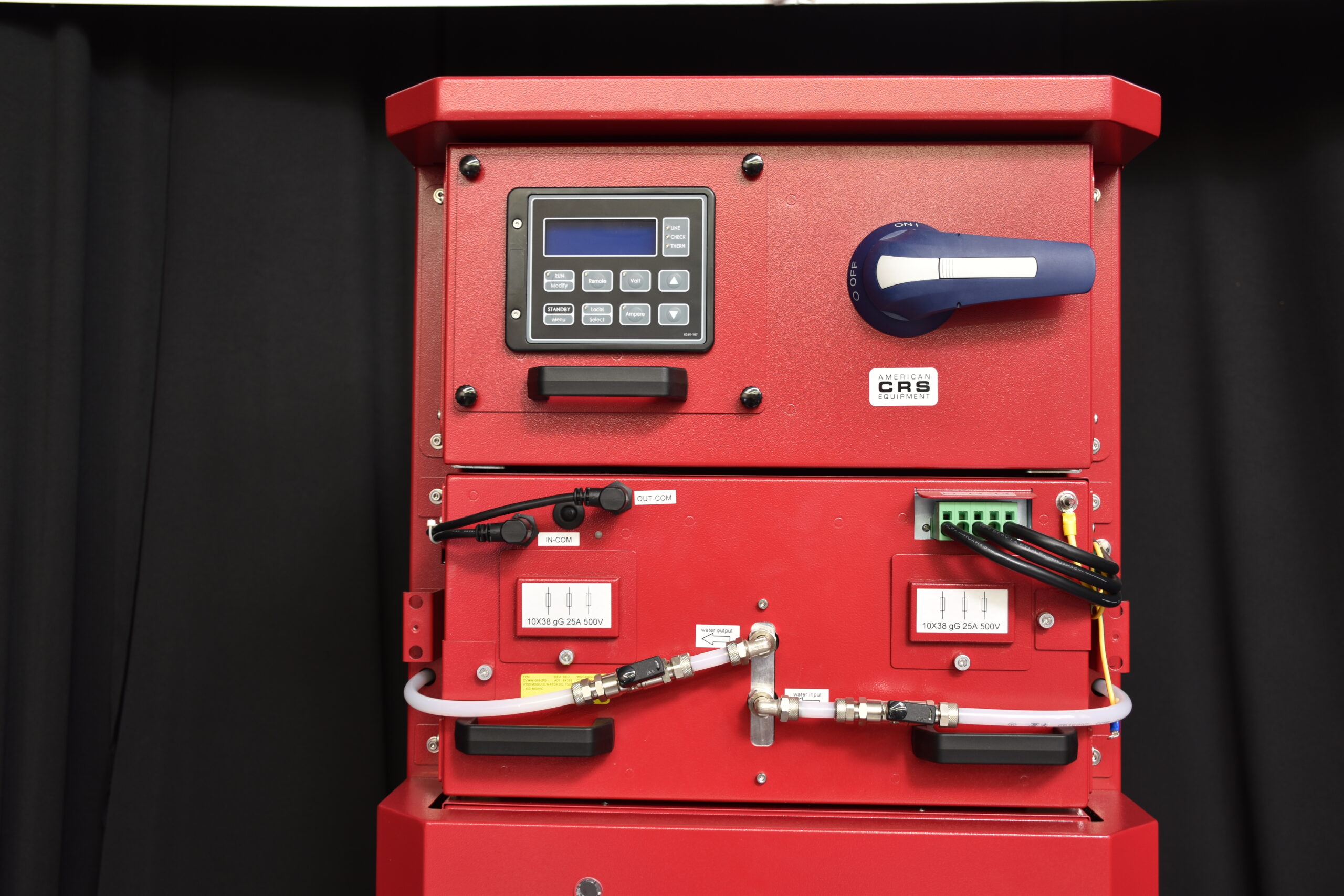

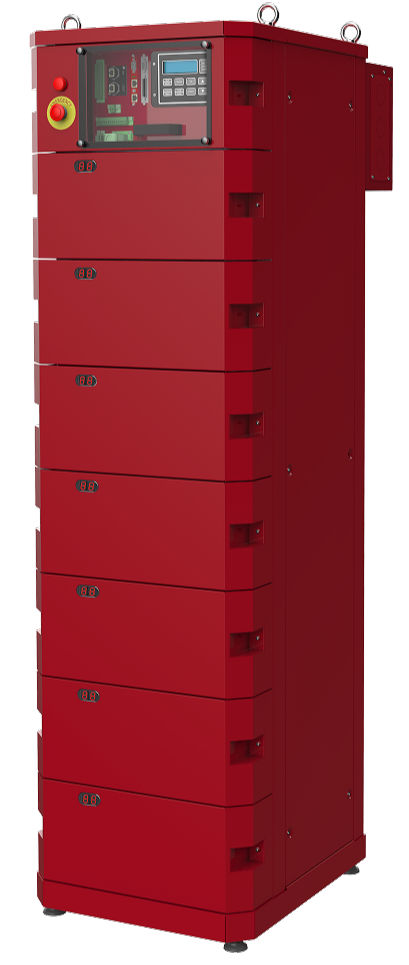

V700 water cooled
Floor-standing water-cooled tower with IP54 protection. A water-flow sensor is included in the standard water-cooled configuration. Confirm water service, connections and the selected cooling package.
Technical specifications
Published limits describe the V700 platform. Output rating, module count, cooling and optional functions determine the specification of an individual tower.
Specification
V700 rating / configuration
Electrical & output
Input supply
Three phase; 208 / 230 / 400 / 440 / 480 / 575 VAC ±10%
Input frequency
50–60 Hz
Maximum power
168 kW
Voltage ratings
6–400 VDC, configuration dependent
Current ratings
100–10,500 A DC, configuration dependent
Ripple
<3%; <1% on request
Power factor
>0.92 at rated load
Efficiency
89–94% at rated load
Control & enclosure
Operating mode
Current or voltage control
Current regulation
2–100%
Voltage regulation
5–100%
Accuracy
1% of full scale
Cooling / protection
Air: IP32
Water: IP54
Ambient temperature
104°F standard
Up to 122°F on request, with derating
Water inlet temperature
66.2–95°F standard
Up to 104°F on request
Weight
110.2–943.6 lb, configuration dependent
Enclosure color
RAL 3004
Select voltage and current together within the specified power and module configuration. Optional waveforms may have different output limits.

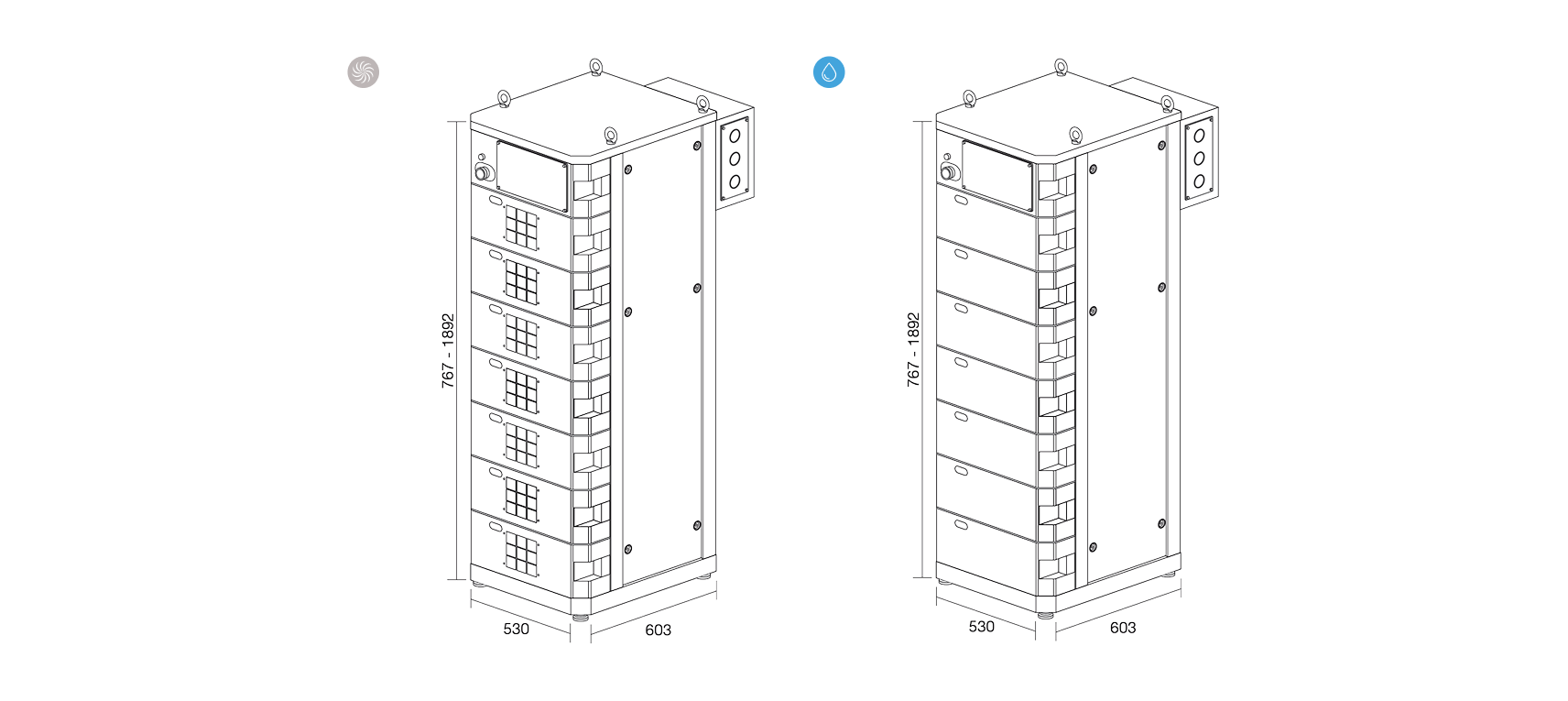

Dimensions & drawings
Air- and water-cooled tower body dimensions are shown in width × height × depth order. Height varies with module arrangement; some protrusions extend beyond the body.
V700 tower body
20.87 in
Width
30.20–74.49 in
Height
23.74 in
Depth
Original drawing uses millimeters; body dimensions above are converted to inches. Confirm mounting, protrusions, connections and service clearances for the selected configuration.
Options & accessories
Configure the V700 around your process, controls and installation. Options are specified separately; availability depends on the selected output and system configuration.
Options
- Higher-efficiency DC output. Synchronous rectification is available for applicable configurations.
- Reversing output. Switch between forward and reverse output polarity.
- Pulse output. A 1 ms option is available for resistive loads; software, recipe and component selection determine performance.
- Auxiliary CPU supply. A 24 VDC auxiliary control-power configuration is available.
- Lower ripple. Ripple below 1% is available on request.
- Emergency stop. Specify the external safety and control arrangement.
- Industrial communications. Profibus-DP, DeviceNet, EtherNet/IP, PROFINET and Modbus TCP.
- Analog PLC control. Integrate process commands and feedback with the plant control system.
- Multi-tower operation. Interconnect compatible units for a common load under coordinated control.
- Extended ambient temperature. Up to 122°F is available on request with derating.
- UL-compliance configuration. Confirm the required components and certification scope for the specific system.
- Water solenoid. Available for applicable water-cooled units; not available with an integrated WWHE heat exchanger.
Accessories
- REM8E remote control. 24 VDC / 24 VAC supply.
- REM8 remote control. 85–264 VAC supply.
- REMMTV. Service tool for Vega rectifiers.
- RSM09A. CPU090 simulator.

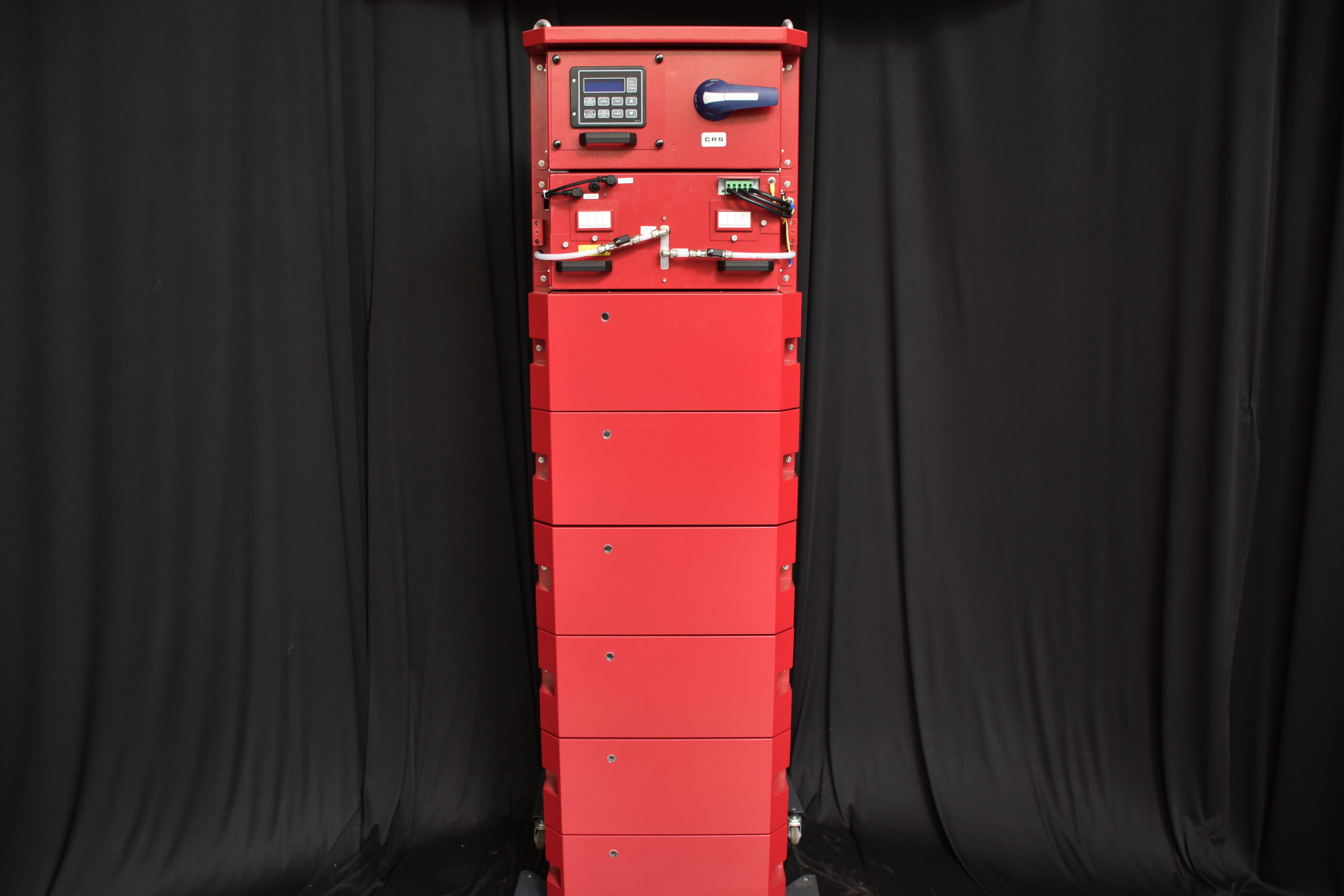

A closer look at the V700
CONFIGURE YOUR V700
Put the right DC power at your process.
Tell American CRS your required voltage and current, available input supply, installation and control needs. We’ll help select a V700 configuration for your electroplating or anodizing operation.
