AMERICAN CRS EQUIPMENT · QUASAR
Q150 three-phase rectifiers
Desktop, rack, vertical or wall mount · Air or water cooling
The Quasar Q150 combines compact three-phase DC power with four installation formats. Select desktop, rack, vertical or wall mounting, with cooling and output ratings matched to your electroplating or anodizing process.
Up to 16 kW
Maximum output power
600 A air / 1,000 A water
Maximum DC output current
Four formats
Q150D · Q150R · Q150V · Q150W
Output ratings depend on the selected configuration. Maximum voltage, current and power are separate limits, not a simultaneous operating point.
Process power that fits the work area.
The Q150 is a full-bridge switch-mode rectifier with current or voltage control. Manual or automatic control, amp-hour counting, ramps and programmable waveforms support repeatable processes. The selected mounting and cooling configuration determines the available output range and enclosure protection.
Three-phase input
Select the nominal input rating to match your facility. Ratings and options are specified for the ordered configuration.
Four installation formats
Desktop Q150D, rack Q150R, vertical Q150V and wall-mounted Q150W keep installation choices within one platform.
Flexible control
Choose current or voltage control with the process functions, communications and optional output waveforms required by your operation.
Four formats. Air or water cooling.
Current CRS specifications offer air and water cooling across the Q150 formats. Maximum current is 600 A with air cooling or 1,000 A with water cooling. The wall-mounted version has its own published electrical and enclosure ratings, shown separately below.

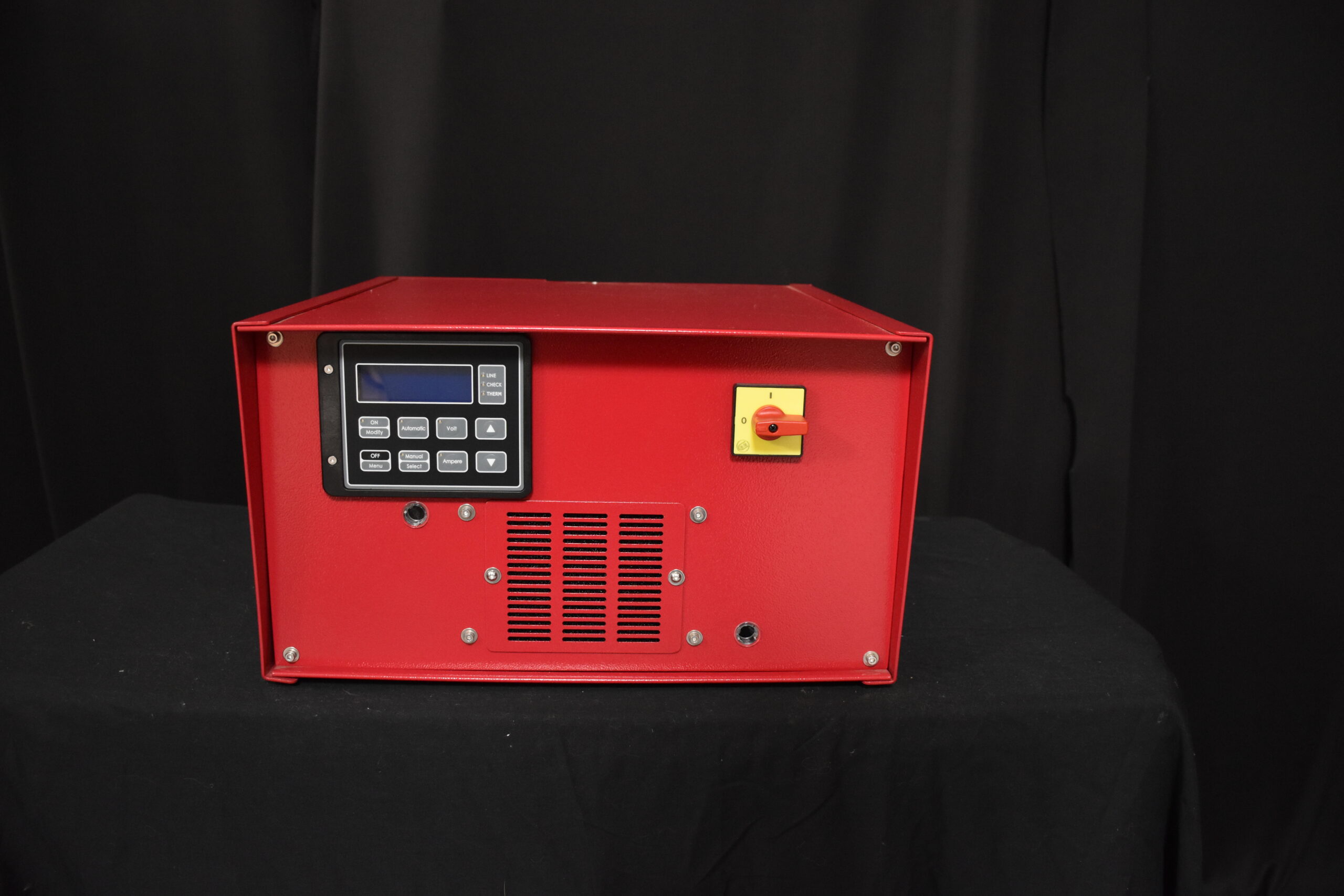

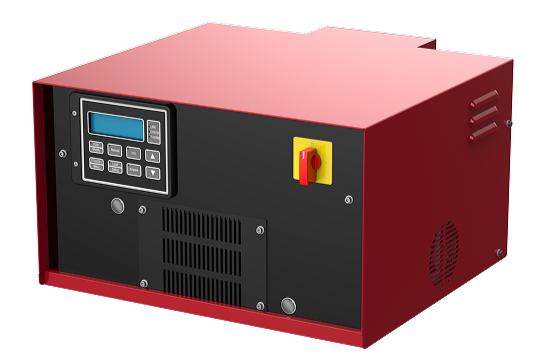

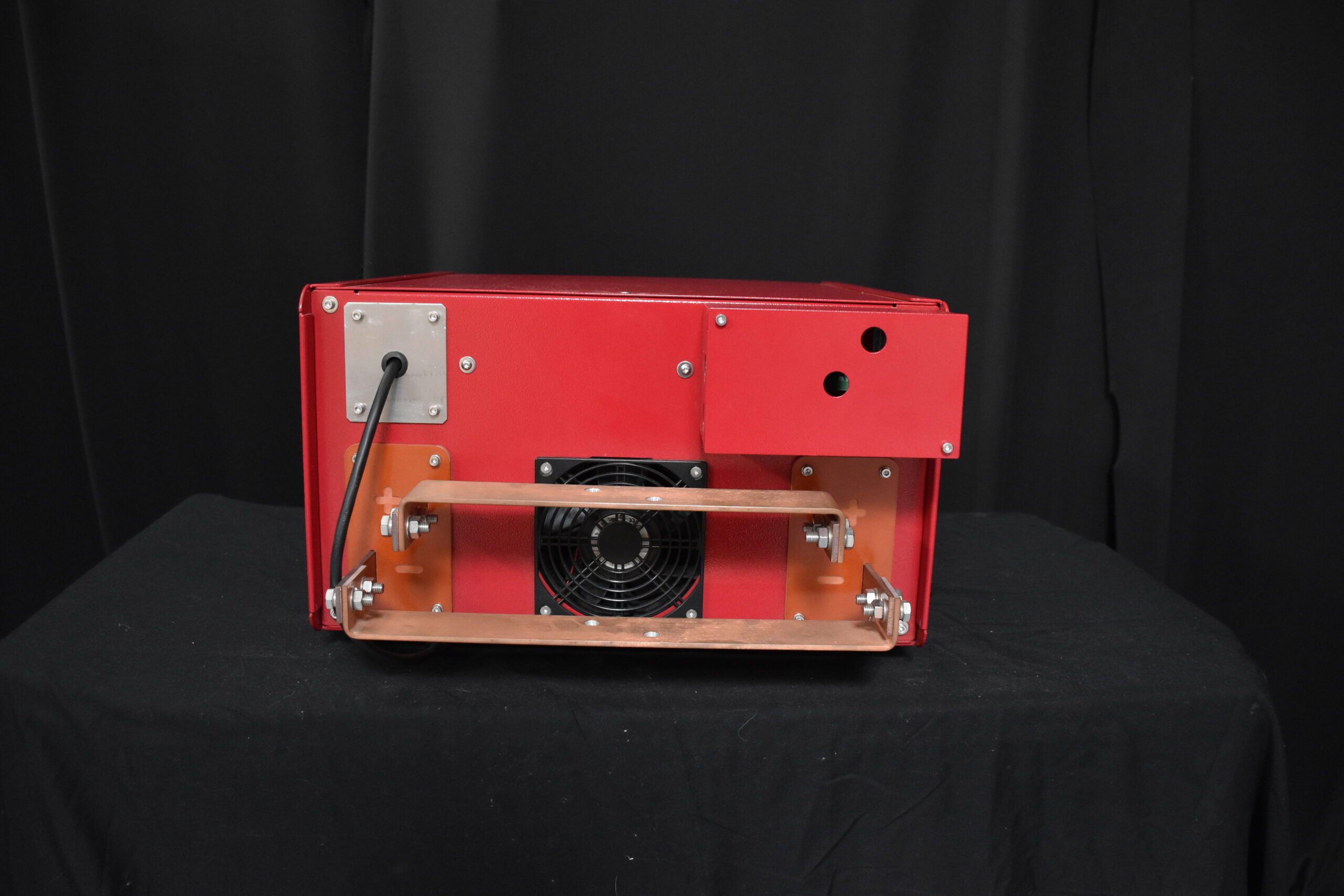

Q150D desktop
Horizontal tabletop installation for a workstation or nearby process. The enclosure body is 17.20 in wide × 9.96 in high × 16.46 in deep.

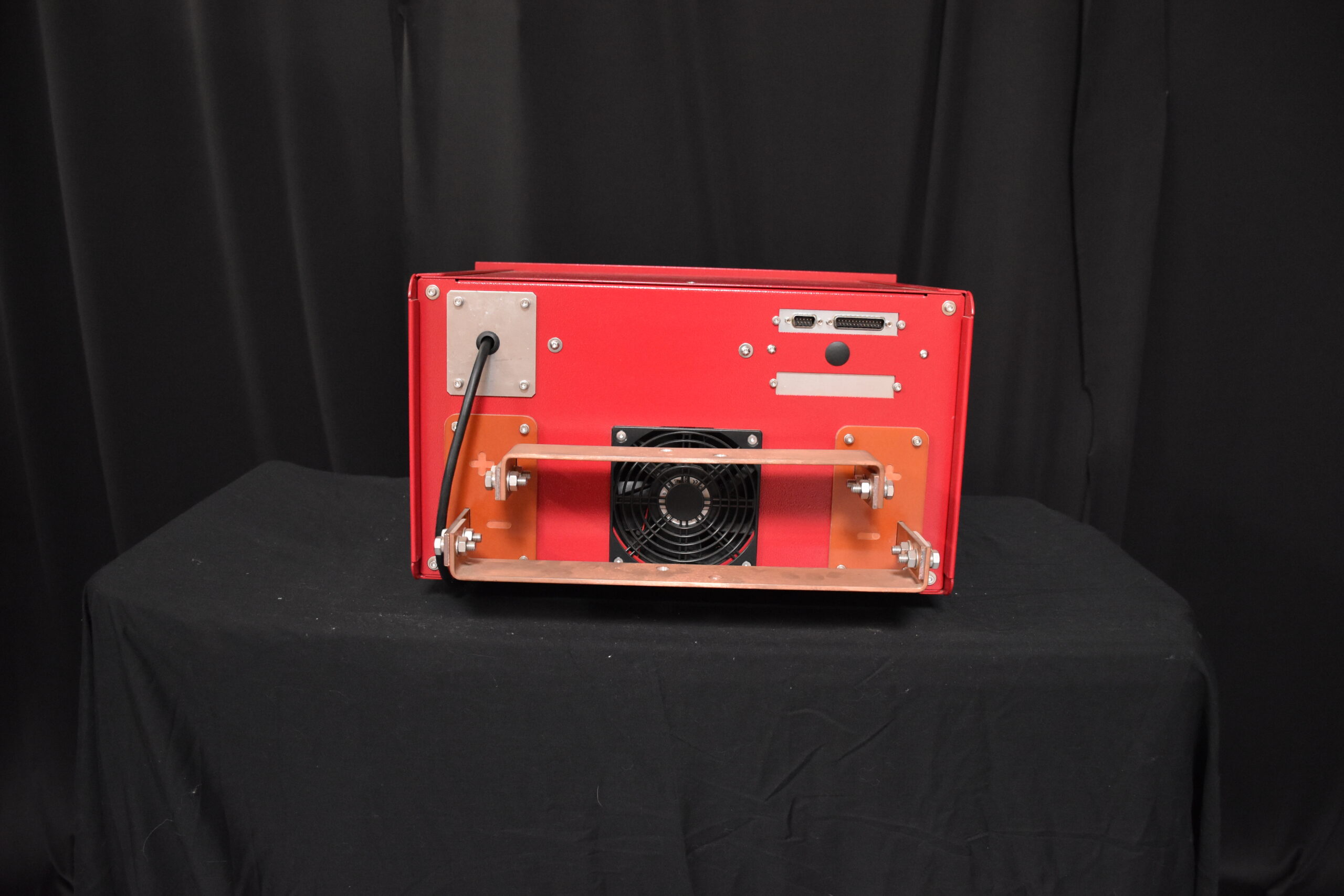

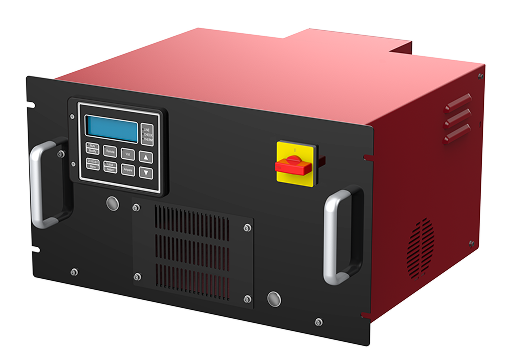

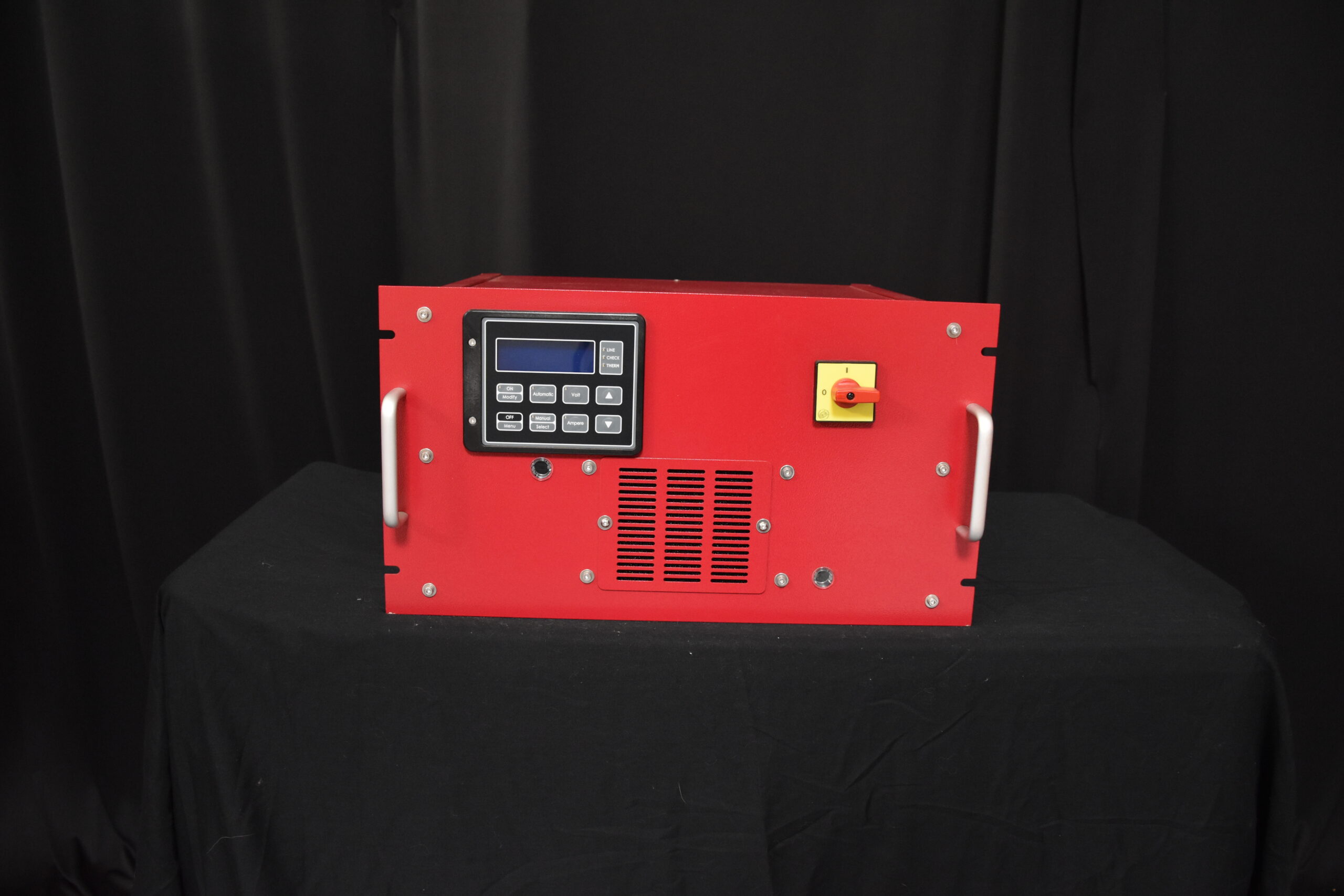

Q150R rack
A rack format with a standard 19-inch mounting interface. Body dimensions exclude rack ears; the Q800 cabinet accessory applies to this Q150R format.

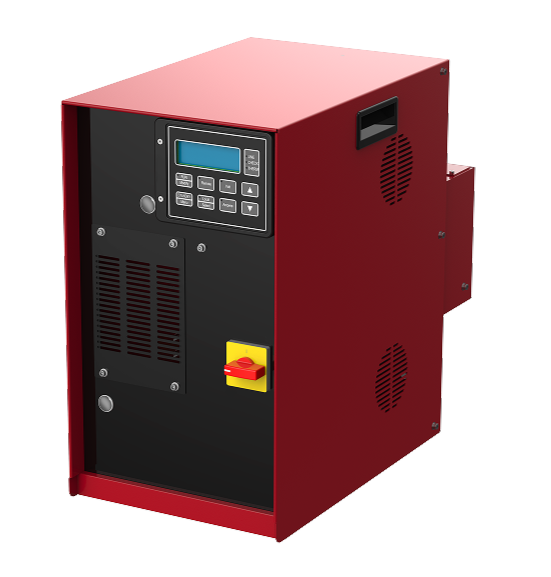

Q150V vertical
A vertical enclosure for installations with a narrower footprint. Body dimensions are 10.24 in wide × 17.56 in high × 16.69 in deep.

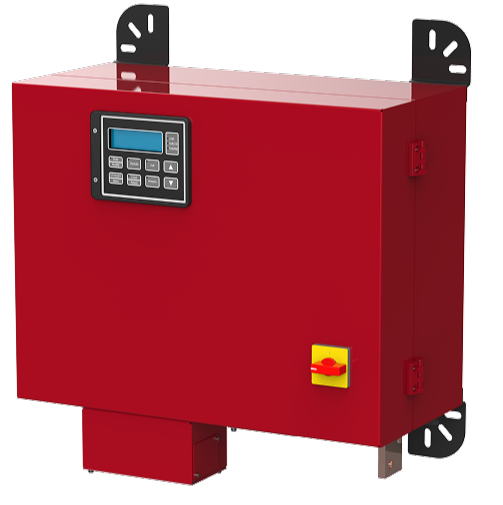

Q150W wall mount
A wall-mounted format with air or water cooling. Published wall-version voltage, efficiency, power factor and water-cooled protection differ from the desktop, rack and vertical page.
Technical specifications
Common platform ratings and variant-specific ratings are separated below. Available voltage, current and power limits are configuration dependent and are not simultaneous maxima.
Specification
Q150 rating / configuration
Common electrical & control
Input supply
Three phase; 208 / 230 / 400 / 440 / 480 / 575 VAC ±10%
Input frequency
50–60 Hz
Maximum power
16 kW
Maximum current by cooling
Air: 600 A DC
Water: 1,000 A DC
Ripple
<2%; <1% on request
Operating mode
Current or voltage control
Current regulation
2–100%
Voltage regulation
5–100%
Accuracy
1% of full scale
Q150D / Q150R / Q150V ratings
Voltage ratings
Up to 160 VDC, configuration dependent
Power factor
>0.95 at rated load
Efficiency
89–94% at rated load
Cooling / protection
Air: IP31
Water: IP45 / IP54, configuration dependent
Q150W wall-version ratings
Voltage ratings
5–600 VDC, configuration dependent
Power factor
>0.92 at rated load
Efficiency
84–94% at rated load
Cooling / protection
Air: IP31
Water: IP42 / IP54, configuration dependent
Environment & enclosure
Ambient temperature
104°F standard
Up to 122°F on request, with derating
Water inlet temperature
66.2–82.4°F standard
Up to 95°F on request
Maximum weight
83.8 lb, configuration dependent
Enclosure color
RAL 3004
Select voltage and current together within the 16 kW power limit. Confirm the mounting format, cooling package, output rating, enclosure protection and control options for the ordered unit.
Dimensions & drawings
Enclosure body dimensions are shown in width × height × depth order. Rack interfaces, mounting tabs, connection boxes and installation clearances require a separate layout check.
Q150D desktop body
17.20 in
Width
9.96 in
Height
16.46 in
Depth
Original drawing uses millimeters; body dimensions above are converted to inches. Confirm all mounting hardware, connection space and service clearances for the selected configuration.
Q150R rack body
17.20 in
Width
9.88 in
Height
14.49 in
Depth
Original drawing uses millimeters; body dimensions above are converted to inches. Confirm all mounting hardware, connection space and service clearances for the selected configuration. Standard 19-inch rack interface is separate from body width.
Q150V vertical body
10.24 in
Width
17.56 in
Height
16.69 in
Depth
Original drawing uses millimeters; body dimensions above are converted to inches. Confirm all mounting hardware, connection space and service clearances for the selected configuration.

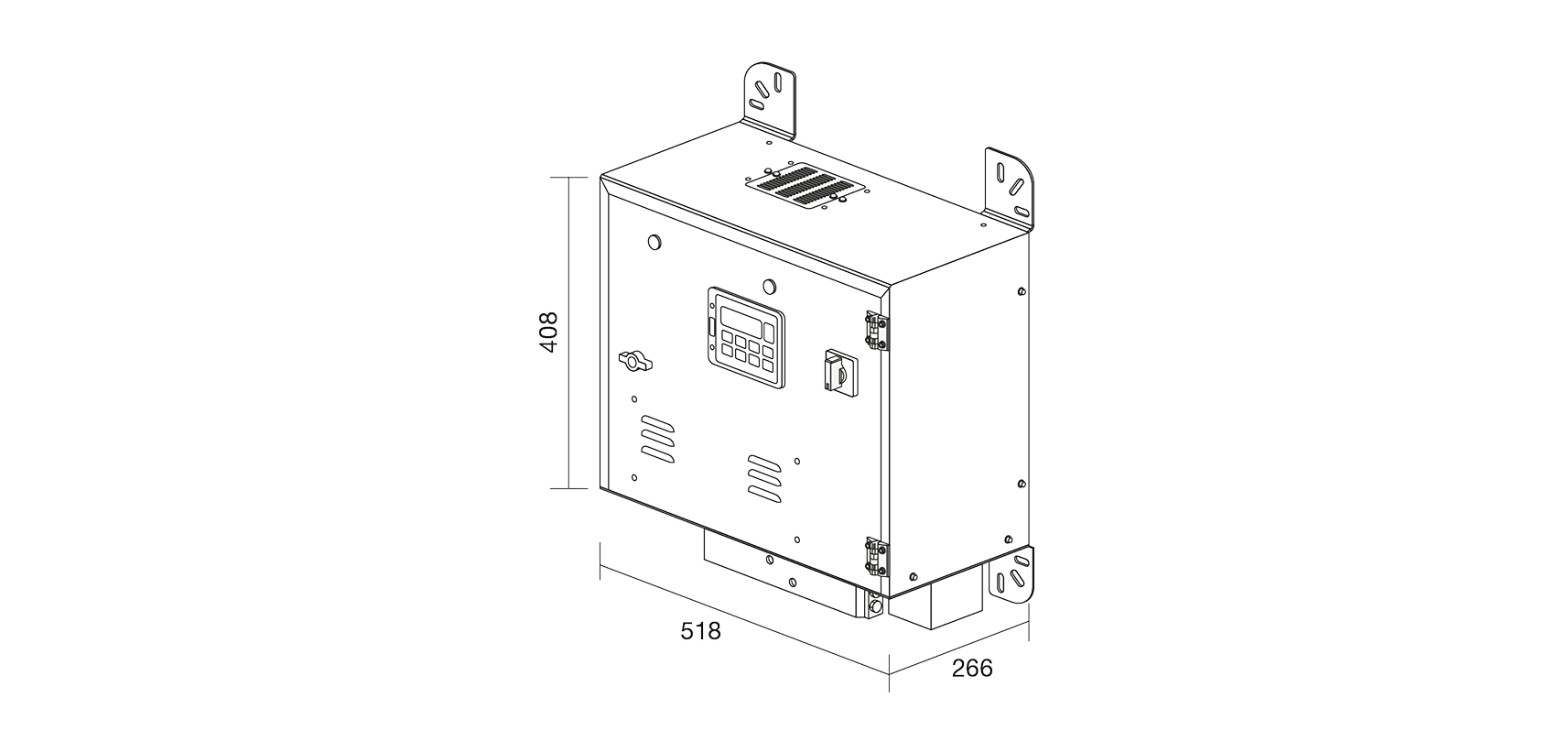

Q150W wall body
20.39 in
Width
16.06 in
Height
10.47 in
Depth
Original drawing uses millimeters; body dimensions above are converted to inches. Confirm all mounting hardware, connection space and service clearances for the selected configuration. Wall body dimensions exclude mounting tabs and the lower connection box.
Options & accessories
Configure the Q150 around your process, controls and installation. Options are specified separately; availability depends on the selected output and system configuration.
Options
- Reversing output. Switch between forward and reverse output polarity.
- Pulse output. A 1 ms option is available for resistive loads; recipe, software and component selection determine performance.
- Lower ripple. Ripple below 1% is available on request.
- Industrial communications. Profibus-DP, DeviceNet, EtherNet/IP, PROFINET and Modbus TCP.
- Plant integration. Analog PLC interface, IOS terminal block and a communications-output enclosure.
- Multi-tower operation. Interconnect compatible units for greater output under coordinated control.
- UL-compliance configuration. Ask ACRS to confirm the required component and certification scope for the specific configuration.
- Emergency stop. Specify the required external safety interface and control arrangement.
- Enclosure options. Stainless steel is offered primarily for wall installations; other covers are available by special request.
- Water-cooling controls. Solenoid valve and water-flow monitoring for applicable water-cooled configurations; integrated heat-exchanger packages have different requirements.
Accessories
- REM8E remote control. 24 VDC / 24 VAC supply.
- REM8 remote control. 85–264 VAC supply.
- REMMT1. Rectifier test equipment.
- RSM09A / PSM08A. CPU090 / CPU080 simulators, respectively.

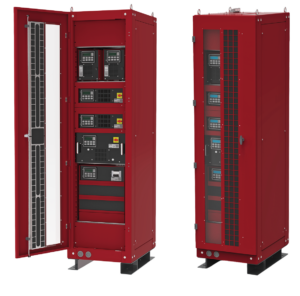

- Q800 Cabinet. Available for the Q150R rack format; not a general cabinet accessory for every Q150 mounting version.

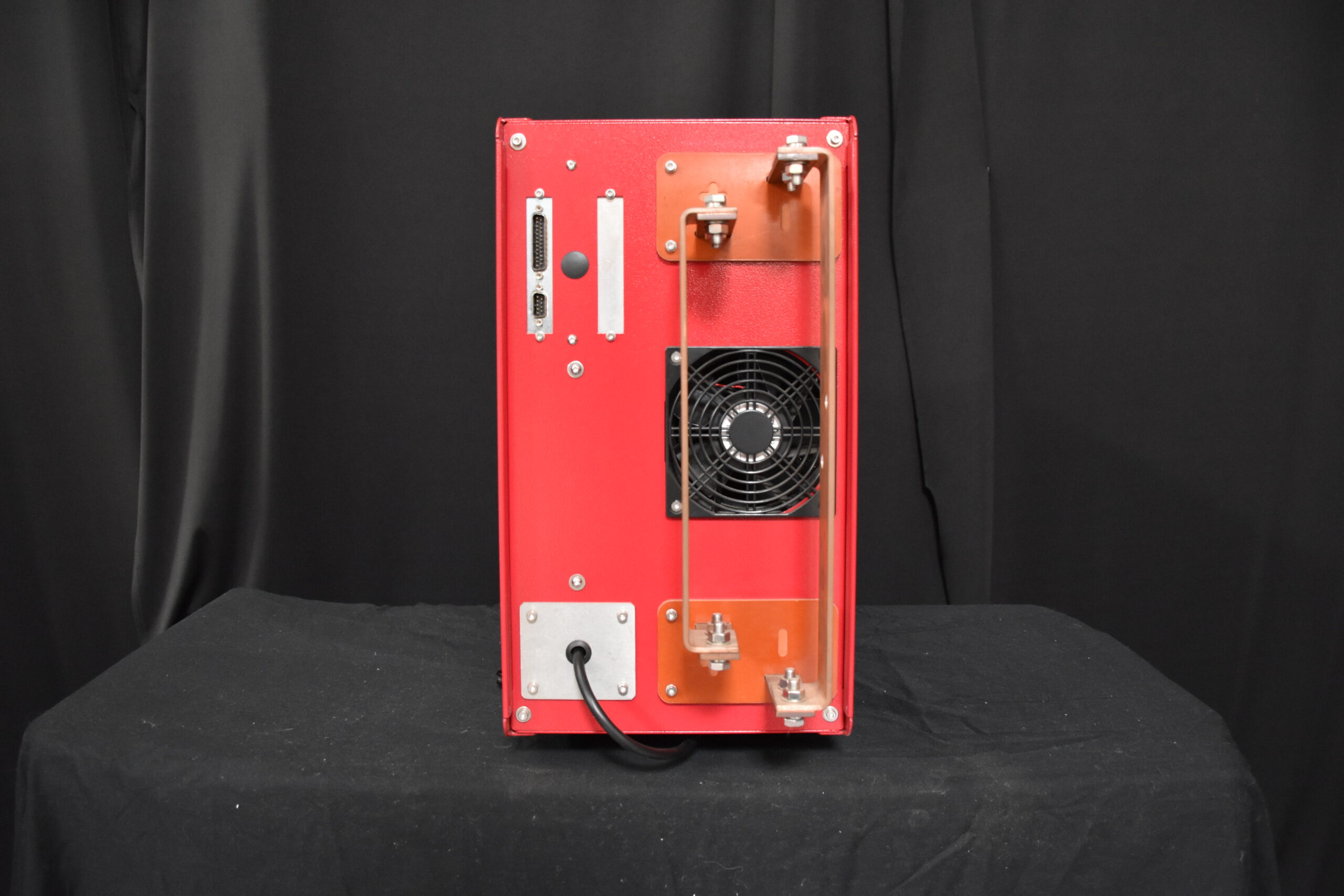

A closer look at the Q150
CONFIGURE YOUR Q150
Put the right DC power at your process.
Tell American CRS your required voltage and current, available input supply, installation and control needs. We’ll help select a Q150 configuration for your electroplating or anodizing operation.
