V150W wall-mounted rectifiers
Water-cooled modular DC power
The Vega V150W combines modular three-phase DC power with a water-cooled wall-mounted enclosure. It brings high current capability and flexible control to electroplating and anodizing installations that benefit from keeping equipment off the floor.
Up to 24 kW
Maximum output power
Up to 1,500 A
Maximum DC output current
5–600 VDC
Available output voltage ratings
Output ratings depend on the selected configuration. Maximum voltage, current and power are separate limits, not a simultaneous operating point.
Modular power. Wall-mounted installation.
The V150W is a full-bridge switch-mode rectifier with two parallel power semi-modules and floating output. Current or voltage control, manual or automatic operation, amp-hour counting and programmable ramps support process needs. Optional reversing, pulse and communications configurations adapt the platform to the application.
Wall mounted
The V150W is a wall-mounted, water-cooled format. Confirm the supporting structure, mounting and service access for the installation.
Floating output
Floating output is part of the Vega platform. The complete grounding and process arrangement is specified for the ordered system.
Flexible process control
Choose the control functions, communications and optional output waveforms needed by your process.
V150W water-cooled wall format.
The current V150 model is the V150W wall-mounted water-cooled platform. Enclosure protection and output ratings depend on the selected configuration.

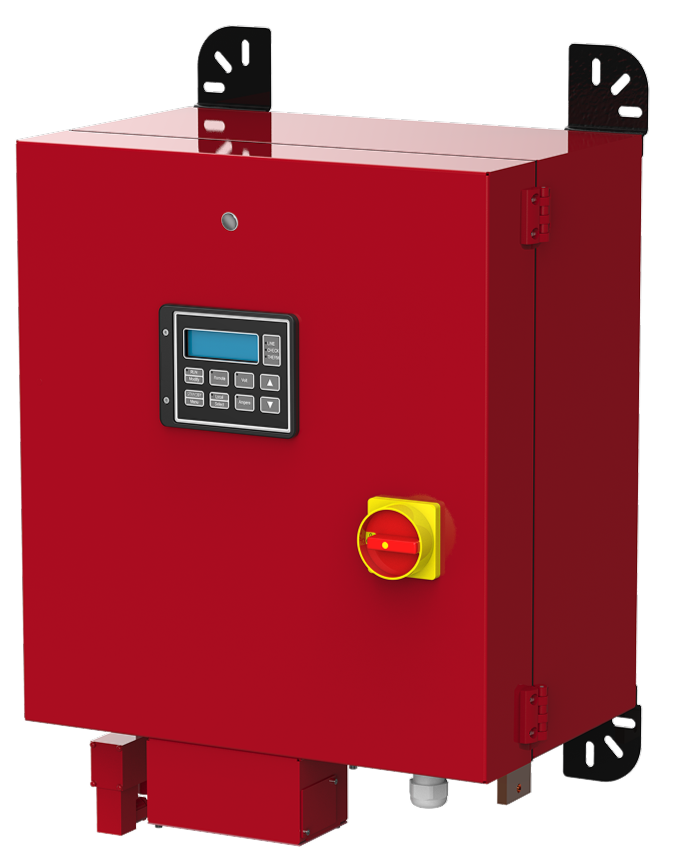

V150W wall mount
Water cooling with IP42 / IP54 enclosure protection by configuration. The enclosure contains two parallel semi-modules; wall mounting and connections require a configuration-specific installation check.
Technical specifications
Ratings below describe the V150W platform. Input supply, output, enclosure protection and optional functions are selected for the application.
Specification
V150 rating / configuration
Electrical & output
Input supply
Three phase; 208 / 230 / 400 / 440 / 480 / 575 VAC ±10%
Input frequency
50–60 Hz
Maximum power
24 kW
Voltage ratings
5–600 VDC, configuration dependent
Current ratings
10–1,500 A DC, configuration dependent
Ripple
<2%; <1% on request
Power factor
>0.92 at rated load
Efficiency
89–94% at rated load
Control & enclosure
Operating mode
Current or voltage control
Current regulation
2–100%
Voltage regulation
5–100%
Accuracy
1% of full scale
Cooling / protection
Water cooled / IP42 or IP54, configuration dependent
Ambient temperature
104°F standard
Up to 122°F on request, with derating
Water inlet temperature
66.2–95°F
Maximum weight
136.7 lb
Enclosure color
RAL 3004
Select voltage and current together within the 24 kW power limit. Confirm the exact output, enclosure protection, cooling connections and control package with ACRS.
Dimensions & drawings

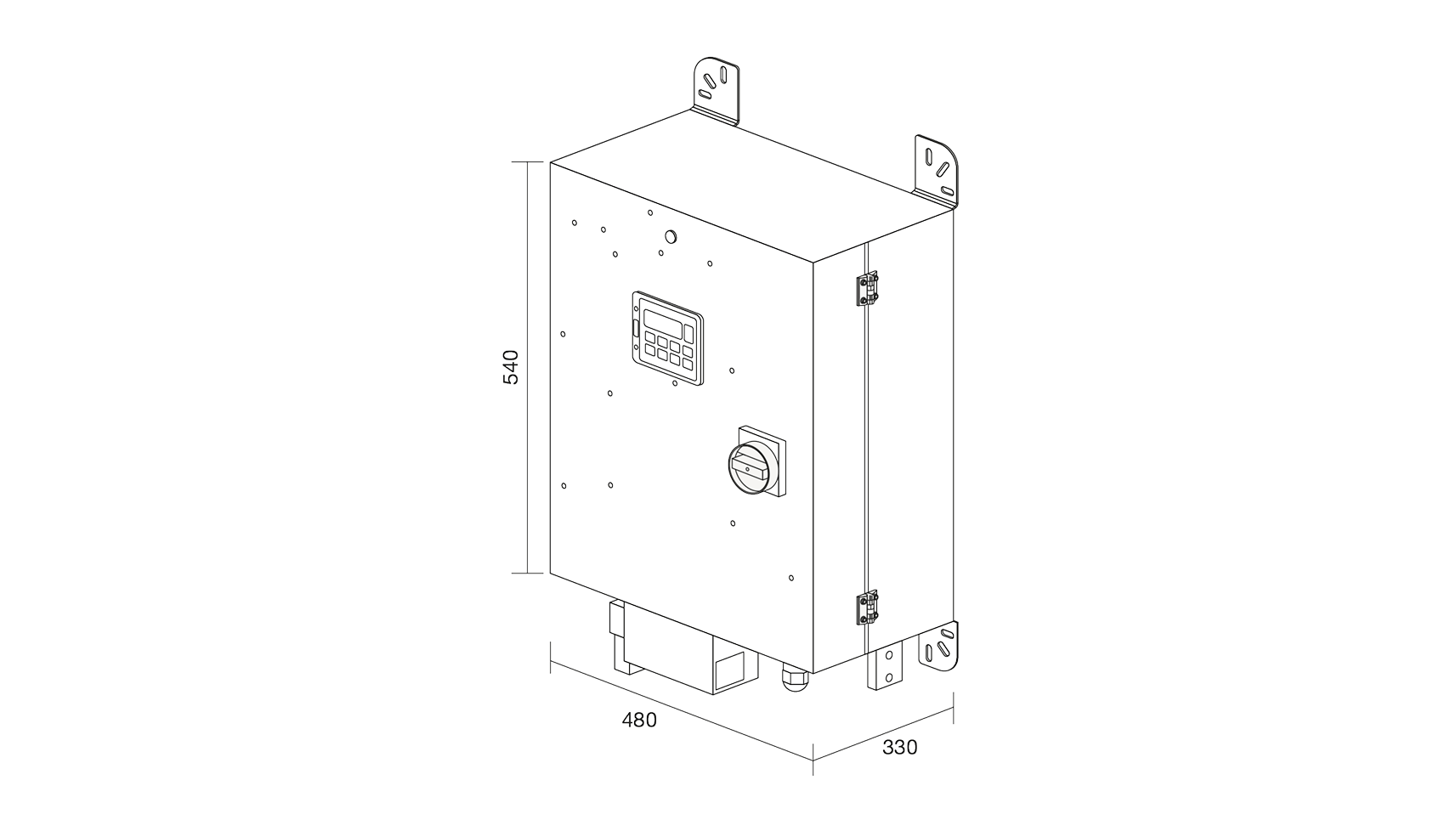

Wall enclosure body dimensions are shown in width × height × depth order. Mounting tabs and protrusions extend beyond the body dimensions.
V150W wall enclosure body
18.90 in
Width
21.26 in
Height
12.99 in
Depth
Original drawing uses millimeters; body dimensions above are converted to inches. Confirm mounting, protrusions, connections and service clearances for the selected configuration. Body dimensions exclude mounting tabs and protrusions.
Options & accessories
Configure the V150 around your process, controls and installation. Options are specified separately; availability depends on the selected output and system configuration.
Options
- Higher-efficiency DC output. Synchronous rectification is available for applicable configurations.
- Reversing output. Switch between forward and reverse output polarity.
- Pulse output. A 1 ms option is available for resistive loads; software, recipe and component selection determine performance.
- Auxiliary CPU supply. A 24 VDC auxiliary control-power configuration is available.
- Lower ripple. Ripple below 1% is available on request.
- Emergency stop. Specify the external safety and control arrangement.
- Industrial communications. Profibus-DP, DeviceNet, EtherNet/IP, PROFINET and Modbus TCP.
- Analog PLC control. Integrate process commands and feedback with the plant control system.
- Multi-tower operation. Interconnect compatible units for a common load under coordinated control.
- Extended ambient temperature. Up to 122°F is available on request with derating.
- UL-compliance configuration. Confirm the required components and certification scope for the specific system.
- Water solenoid. Available for applicable water-cooled units; not available with an integrated WWHE heat exchanger.
- Stainless enclosure. Specify the enclosure material and protection package for the installation.
Accessories
- REM8E remote control. 24 VDC / 24 VAC supply.
- REM8 remote control. 85–264 VAC supply.
- REMMTV. Service tool for Vega rectifiers.
- RSM09A. CPU090 simulator.
A closer look at the V150
CONFIGURE YOUR V150
Put the right DC power at your process.
Tell American CRS your required voltage and current, available input supply, installation and control needs. We’ll help select a V150 configuration for your electroplating or anodizing operation.
